Meßwerkzeuge:
Rundlaufprüfsysteme

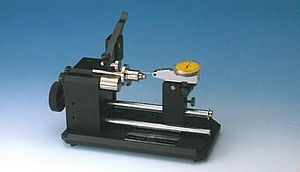

Model A-10
![](/fileadmin/_processed_/b/a/csm_Rundlaufpruefgeraete-Model_A-10_13af25b6c5.jpg)
A-10 Model
Teiledurchmesser: 1/8” to 1” (3mm to 25mm)
Teillängen: Up to 3” (76mm)
Messlänge: 8.5" (216mm)
Messbreite: 4.5" (114mm)
Gewicht: 4.5lb. (2.0kg.)

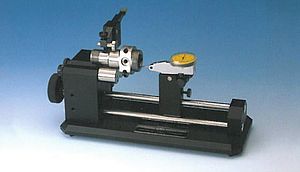

Model B-10
![](/fileadmin/_processed_/3/5/csm_Rundlaufpruefgeraete-Model_B-10_50ddf431a3.jpg)
B-10 Model
Teiledurchmesser: 1/8" to 1' (3mm to 25mm)
Teillängen: Up to 4" (102mm)
Messlänge: 10.5" (267mm)
Messbreite: 4.5" (114mm)
Gewicht: 4.9lb. (2.2kg.)

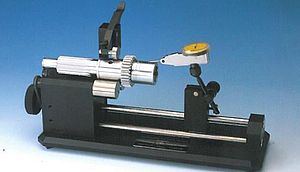

Model B-20
![](/fileadmin/_processed_/c/1/csm_Rundlaufpruefgeraete-Model_B-20_8b9cf5de59.jpg)
B-20 Model
Teiledurchmesser: 3/8" to 2" (10mm to 50mm)
Teillängen: Up to 6" (152mm)
Messlänge: 12.5" (318mm)
Messbreite: 4.5" (114mm)
Gewicht: 6.4lb. (2.9kg.)

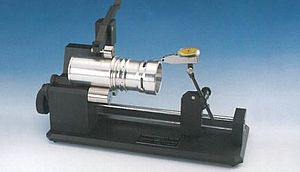

Model B-40
![](/fileadmin/_processed_/4/c/csm_Rundlaufpruefgeraete-Model_B-40_abccd51ab2.jpg)
B-40 Model
Teiledurchmesser: 3/4" to 4" (20mm to 102mm)
Teillängen: Up to 8" (203mm)
Messlänge: 14.5" (368mm)
Messbreite: 6" (152mm)
Gewicht: 11.2lb. (5.1kg.)

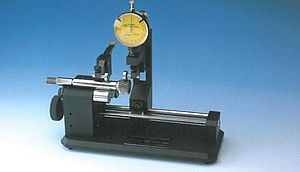

Model E
![](/fileadmin/_processed_/8/3/csm_Rundlaufpruefgeraete-Model_E_6f059ee72d.jpg)
E-Modelle
Teiledurchmesser: 1/8" to 1" (3mm to 25mm)
Teillängen: Up to a 4" (102mm)
Gewicht: 4.91b. (2.2kg.)
E-20 Model
Teillängen: Up to a 6" (152mm)
Gewicht: 6.41b. (2.9kg.)
E-40 Model
Teiledurchmesser: 3/4" to 4" (20mm to 102m)
Teillängen: Up to a 8" (203mm)
Gewicht: 11.21b. (5.14.)

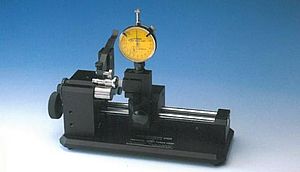

Model F
![](/fileadmin/_processed_/f/2/csm_Rundlaufpruefgeraete-Model_F_ce669eb832.jpg)
F-10 Model
Teiledurchmesser: 1/8" to 1" (3mm to 25mm)
Teillängen: Up to a 4" (102mm)
Gewicht: 4.9lb. (2.2kg.)
F-20 Model
Teiledurchmesser: 3/8" to 2” (10mm to 50mm)
Teillängen: Up to a 6" (152mm)
Shipping Weig .6,4lb. (2.9kg.)

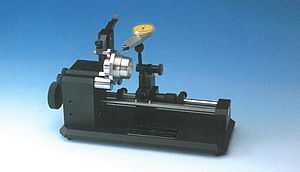

Model G1
![](/fileadmin/_processed_/5/4/csm_Rundlaufpruefgeraete-Model_G1_cf857837b1.jpg)
G1-10 Model
Teiledurchmesser: 1/8" to 1" (3mm to 25mm)
Teillängen: Up to a 4" (102mm)
Gewicht: 4.9lb. (2.2kg.)
G1 -20 Model
Teiledurchmesser: 3/8" to 2" (10mm to 50mm)
Teillängen: Up to a 6" (152mm)
Gewicht: 6.4lb. (2.9kg.)
G1-40 Model
Teiledurchmesser: 3/4" to 4" (20mm to 102mm)
Teillängen: Up to a 8" (203mm)
Gewicht: 11.2lb. (5.1kg.)

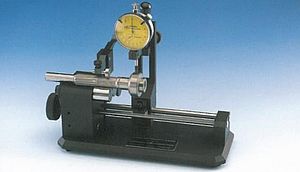

Model G2
![](/fileadmin/_processed_/4/7/csm_Rundlaufpruefgeraete-Model_G2_08fa4aebc6.jpg)
G2-10 Model
Teiledurchmesser: 1/8" to 1" (3mm to 25mm)
Teillängen: Up to a 4" (102mm)
Gewicht: 4.9lb. 2kg.)
G2-20 Model
Teiledurchmesser: 3/8" to 2" (10mm to 50mm)
Teillängen: Up to a 6" (152mm)
Gewicht: 6.4lb. (2.9kg.)
G2-40 Model
Teiledurchmesser: 3/4" to 4" (20mm to 102mm)
Teillängen: Up to a 8" (203mm)
Gewicht: 11.2lb. (5.1kg.)

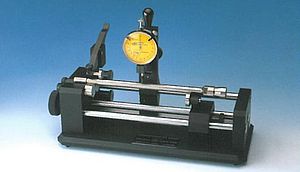

Model H
![](/fileadmin/_processed_/2/3/csm_Rundlaufpruefgeraete-Model_H_c157378fb9.jpg)
H-10 Model
Teiledurchmesser: 1/8" to 1" (3mm to 25mm)
Teillängen: Up to 12" (305mm)
Gewicht: 7.5 lb. (3.4kg.)
H-20 Model
Teiledurchmesser: 3/8" to 2" (10mm to 50mm)
Teillängen: Up to 12" (305mm)
Gewicht: 8.51b. (3.9kg.)
H-40 Model
Teiledurchmesser: 3/4" to 4" (20mm to 102mm)
Teillängen: Up to a 12" (305mm)
Gewicht: 11.21b. (5.1kg.)

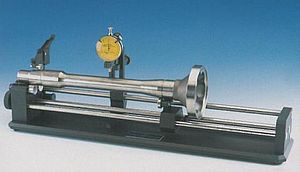

Model HL
![](/fileadmin/_processed_/f/5/csm_Rundlaufpruefgeraete-Model_HL_1440cc83c6.jpg)
HL-10 Model
Teiledurchmesser: 1/8" to 1" (3mm to 25mm)
Teillängen: Up to 24" (610mm)
Gewicht: 24.5lb. (11.1kg.)
HL-20 Model
Teiledurchmesser: 3/8' to 2 (10mm to 50mm)
Teillängen: Up to 24" (610mm)
Gewicht: 26.5lb. (12kg.)
HL-40 Model
Teiledurchmesser: 3/4" to 4" (20mm to 102mm)
Teillängen. Up to a 24" (610mm)
Gewicht: 18.5Ib. (8.4kg. )

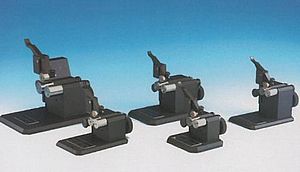

Model J
![](/fileadmin/_processed_/c/5/csm_Rundlaufpruefgeraete-Model_J_f6026ededd.jpg)
JLS-10, JLP-10. J-10 Models
Teiledurchmesser: 1/8" to 1' (3mm to 25mm)
Teillängen: Up to a 4" (102mm)
Gewicht: 4.5lb. (2.2kg.)
J-20 Model
Teiledurchmesser: 3/8" to 2" (10mm to 50mm)
Teillängen: Up to a 6" (152mm)
Shipping Weght: 4.4lb. (2.0kg. )
J-40 Model
Teiledurchmesser:./4" to 4" (20mm to 102mm)
Teillängen: Up to a 8" (203mm)
Gewicht: 9.2lb. (4.2kg.)

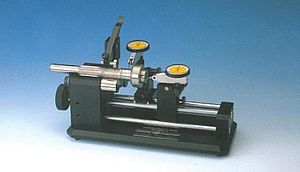

Model K1
![](/fileadmin/_processed_/e/b/csm_Rundlaufpruefgeraete-Model_K1_bed74cc4e4.jpg)
K1-10 Model
Teiledurchmesser: 1/8" to 1" (3mm to 25mm)
Teillängen. Up to a 4" (102mm)
Gewicht: 11.5lb. (5.2kg.)
K1-20 Model
Teiledurchmesser: 3/8" to 2" (10mm to 50mm)
Teillängen: Up to a 6" (152mm)
Gewicht: 14.8lb. (6.8kg.)
K1-40 Model
Teiledurchmesser: 3/4" to 4" (20mm to 102mm)
Teillängen: Up to a 8" (203mm)
Gewicht: 11.5lb. (5.2kg)

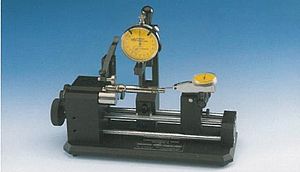

Model K2
![](/fileadmin/_processed_/9/d/csm_Rundlaufpruefgeraete-Model_K2_57902b6e34.jpg)
K2-10 Model
Teiledurchmesser: 1/8" to 1" (3mm to 25mm)
Teillängen: Up to 4" (102mm)
Gewicht: 4.9lb. (2.2kg.)
K-20 Model
Teiledurchmesser: 3/8" to 2" (10mm to 50mm)
Teillängen: Up to 6" (152mm)
Gewicht: 14,8lb. (6.8kg.)
K2-40 Model
Teiledurchmesser: 3/4" to 4" (20mm to 102mm)
Teillängen: Up to 8" (203mm)
Gewicht: 11.2lb. (5.1kg.)
Model KK1
![](/fileadmin/_processed_/2/6/csm_Rundlaufpruefgeraete-Model_KK1_030f9b021f.jpg)
KK1-10 Model
Teiledurchmesser: 1/8" to 1" (3mm to 25mm)
Teillängen: Up to 4" (102mm)
Gewicht: 4.91b. (2.2kg.)
KK1-20 Model
Teiledurchmesser: 3/8" to'10mm to 50mm)
Teillängen: Up to 6” (152mm)
Gewicht: 14 .8lb. (6.8kg. )
KK1-40 Model
Teiledurchmesser: 3/4" to 4" (20mm to 102mm)
Teillängen: Up to 8" (203mm)
Gewicht: 18.51b. (8.4kg.)

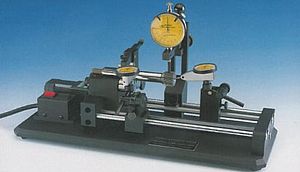

Model KK2
![](/fileadmin/_processed_/8/5/csm_Rundlaufpruefgeraete-Model_KK2_da83a4231c.jpg)
KK2-10 Model
Teiledurchmesser: 1/8" to 1" (3mm to 25m)
Teillängen: Up to 4" (102mm)
Gewicht: 4.9lb. (2.2kg.)
KK2-20 Model
Teiledurchmesser: 3/8" to 2" (10mm to 50mm)
Teillängen: Up to 6" (152mm)
Gewicht: 14.8lb. (6.8kg.)
KK2-40 Model
Teiledurchmesser: 3!4" to 4" (20mm to 102mm)
Teillängen: Up to 8" (203mm)
Gewicht: 18.5lb. (8.4kg.)
(Optional Motorized Drive Unit Shown)

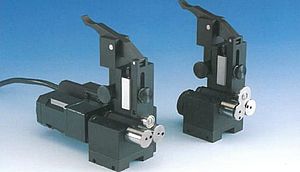

Model LG
![](/fileadmin/_processed_/e/3/csm_Rundlaufpruefgeraete-Model_LG_aaba823d84.jpg)
LG-10, LGM-10 Models
Teiledurchmesser: 1/8" to 1" (3mm to 25mm)
Teillängen: Up to 6" (152mm)
Gewicht: 3.51b. (1.6kg.)
LG-20, LGM-20 Models
Teiledurchmesser: 3/8" to 2" (10mm to 50mm)
Teillängen: Up to a 6” (152mm)
Gewicht: 4.41b.` (2.0kg.)
(Wahlweise mit Schrittmotor Verfügbar)

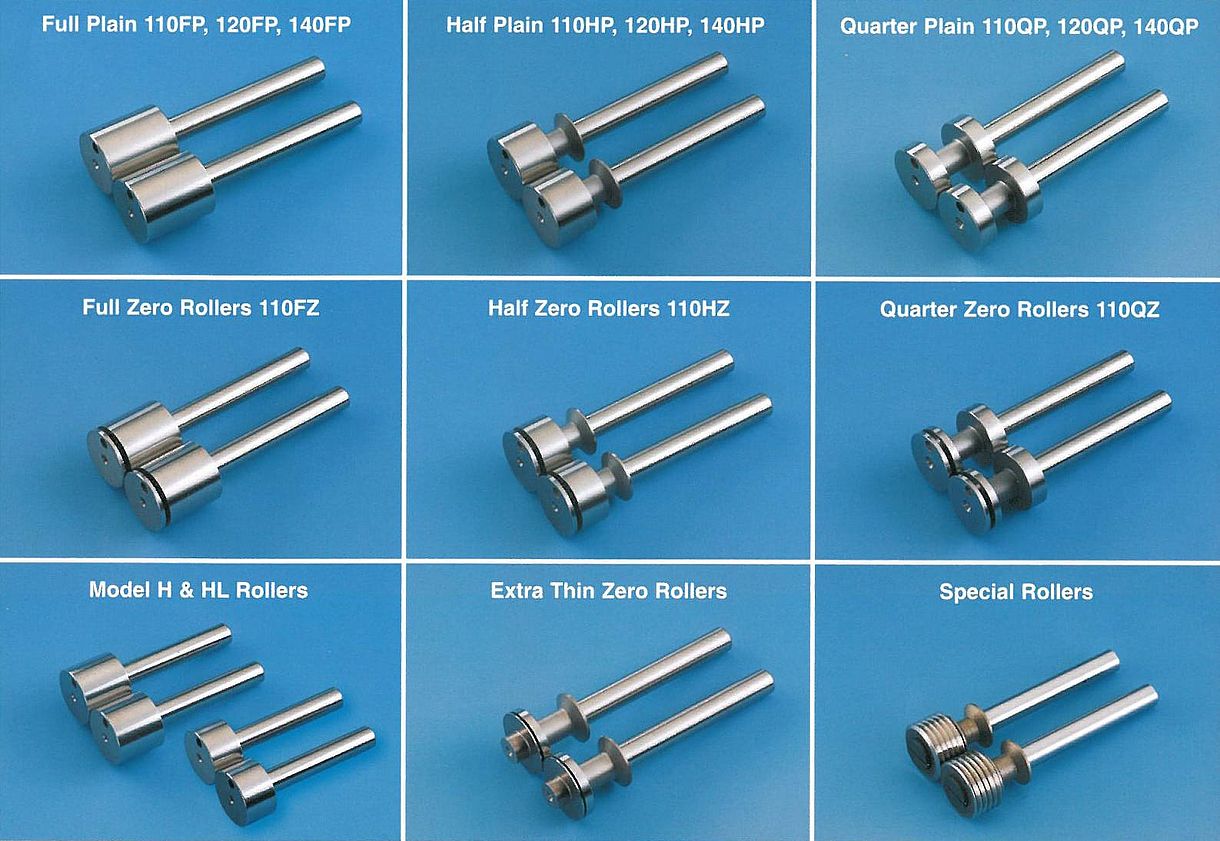

Hauptwalzen Auswahl
![](/fileadmin/_processed_/4/5/csm_Rundlaufpruefgeraete-Hauptwalzen_Auswahl_80d4d31407.jpg)

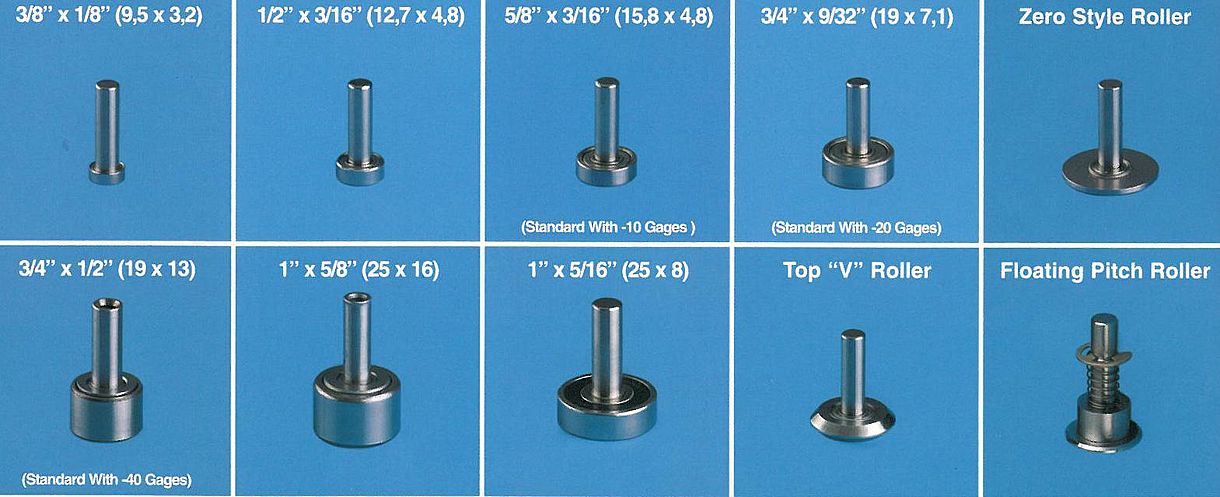

Obere Walzen Auswahl
![](/fileadmin/_processed_/6/1/csm_Rundlaufpruefgeraete-Obere_Walzen_Auswahl_05918a1ddf.jpg)
